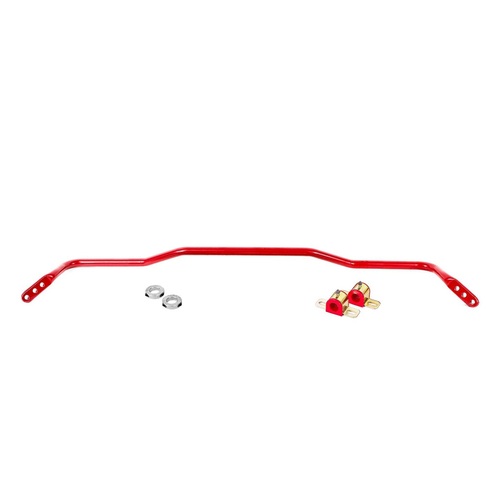

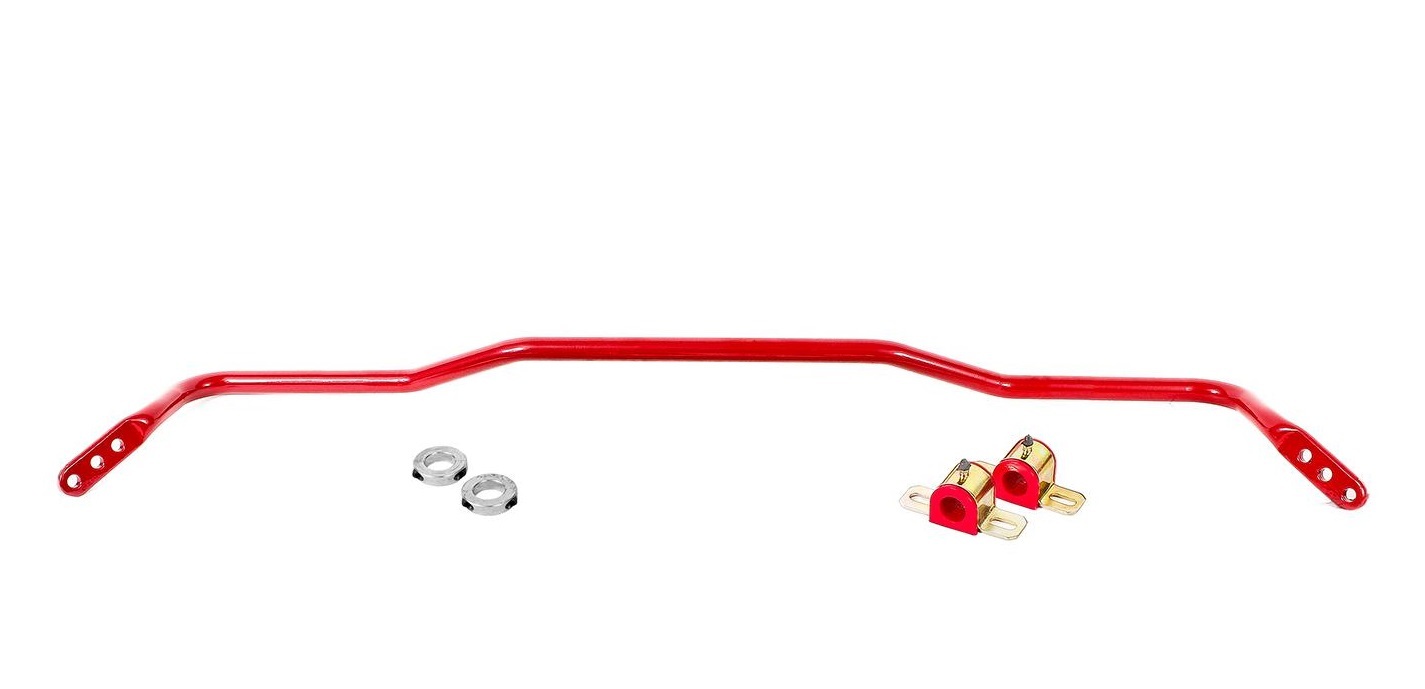

Sway Bar Kit, Rear, Hollow, 25mm, 3-hole Adjustable

Red Powdercoat Finish

Fits 2015 - 2023 S550 Mustangs

DESCRIPTION

Fits S550 Mustangs
- Designed for street performance, autocross, and road race applications
- Dramatically reduces body roll
- 63%-208% increase is sway bar rate over stock sway bar
- Cold formed to better resist torsional fatigue
- Manufactured from 25mm heavy-duty bar stock for increased strength

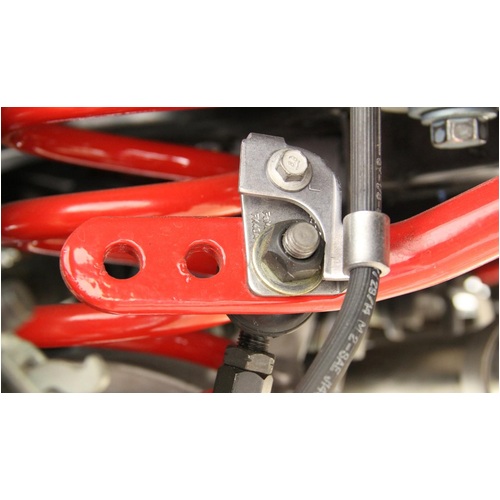

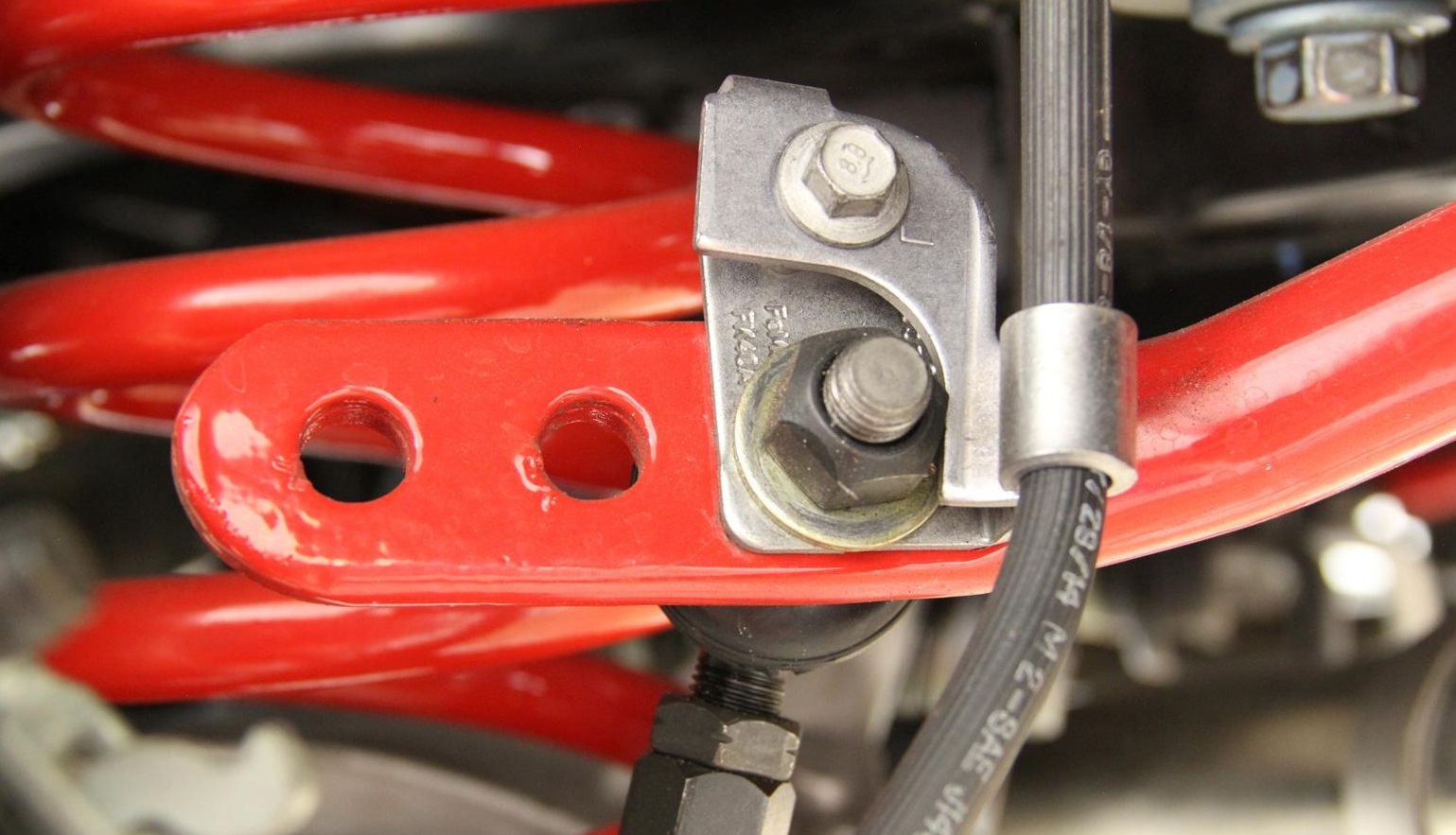

- Three-way adjustable design

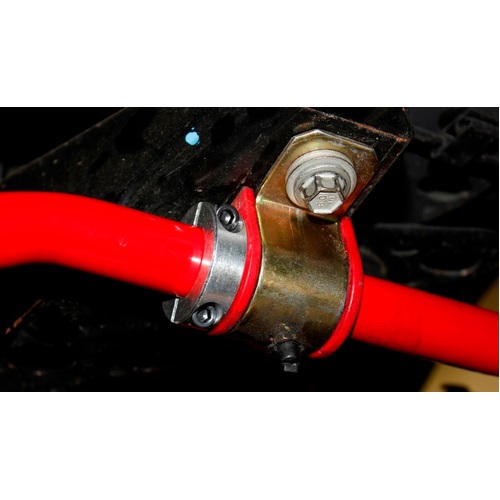

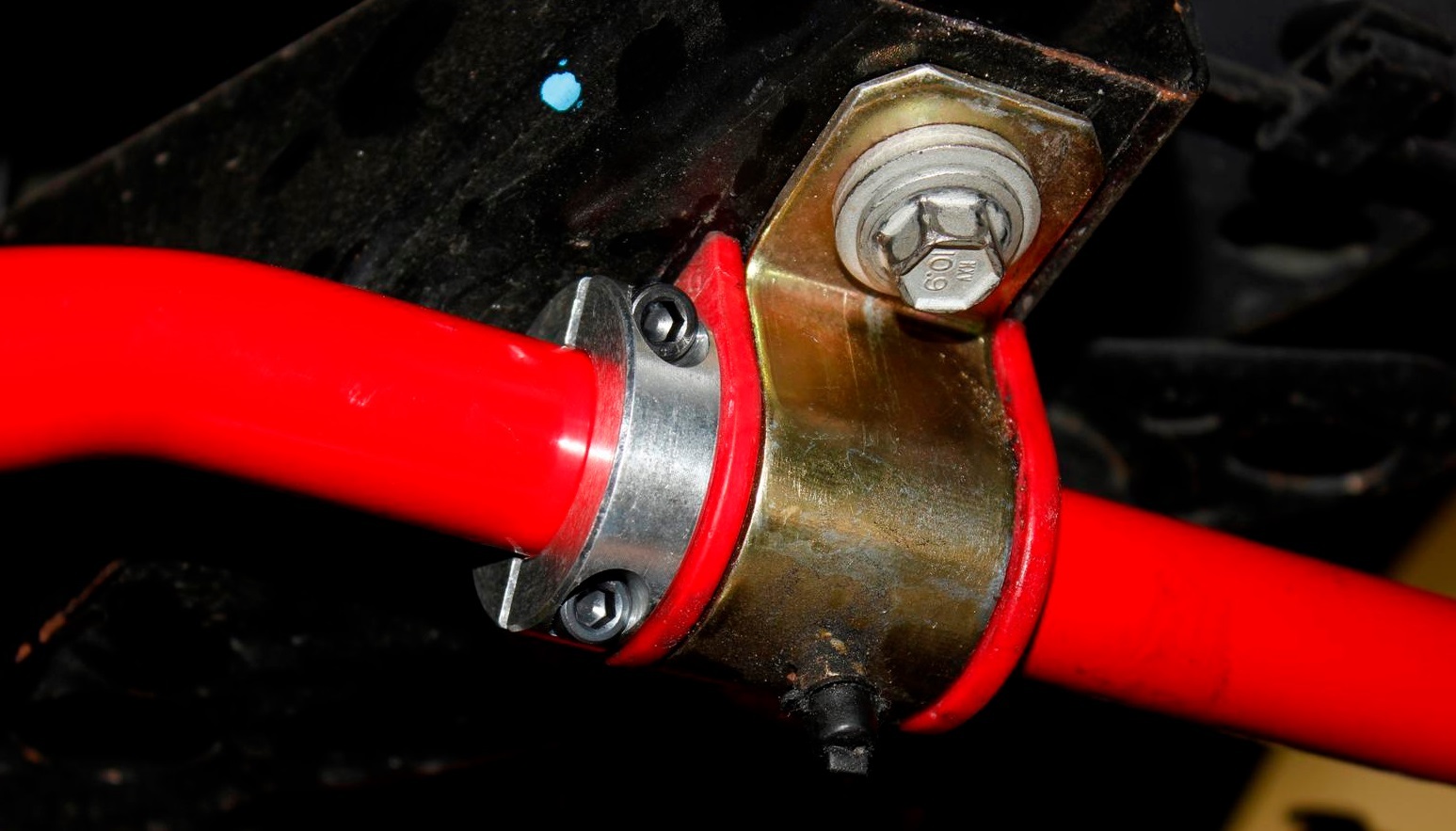

- 88-durometer, greasable polyurethane bushings
- Zinc-plated inner sleeves
- Durable powdercoat finish
- 1-2-hour installation time
- Proudly designed in the U.S.A.
- Proudly made in the U.S.A.

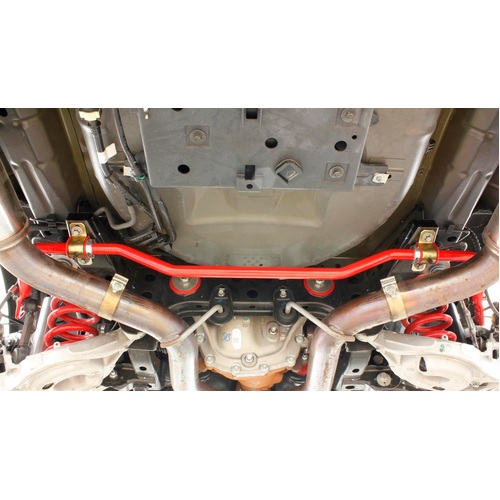

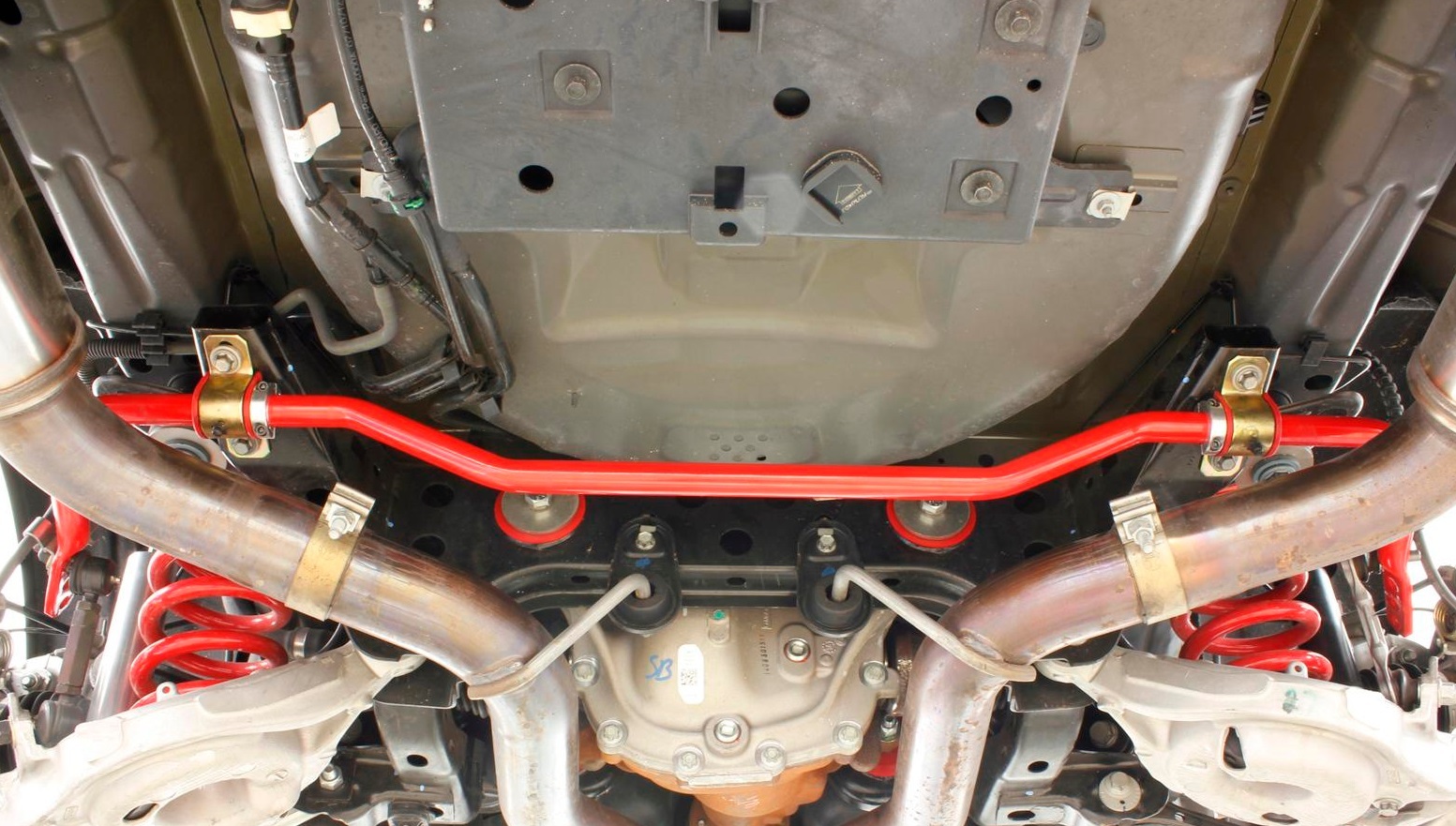

The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR Suspension’s SB045 rear sway bar was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-duty 25mm bar stock, the SB045 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. The SB045 attaches to your S550 Mustang with 88-durometer polyurethane bushings, reducing the deflection from the stock rubber bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keep grease in the bushing.

BMR Suspension designed the SB045 sway bar for street performance, autocross, and road race applications. The three-way adjustable SB045 gives you a 63%-208% increase in rate over the stock bar. The rate increases gives you improved handling characteristics so you can drive harder through corners with minimal body roll. This allows for more sway bar control, which equals better handling. When performance is a must, rely on BMR Suspension!

BMR Suspension’s SB045 sway bars are available in black hammertone and red powdercoat for long-lasting good looks. Installation time is about 1-2 hours.

Part Number BMR-SB045H

Installation Instructions

Features

Specifications

SKU	BMR-SB045R
Model #	SB045R
Barcode #	887753326348
Brand	BMR Suspension
Shipping Weight	6.0000kg
Shipping Width	0.260m
Shipping Height	0.130m
Shipping Length	1.500m
Shipping Cubic	0.050700000m3
